Channels
1
Pipe Material
PC Clear (UL94 V-0)
Shield Material
/
ESD Protection
< 8 kV
Operating Temperature
−40 °C ~ +90 °C
Pitch
N/A
LED Suggestion
LxWxH<4.60x4.00x2.20mm

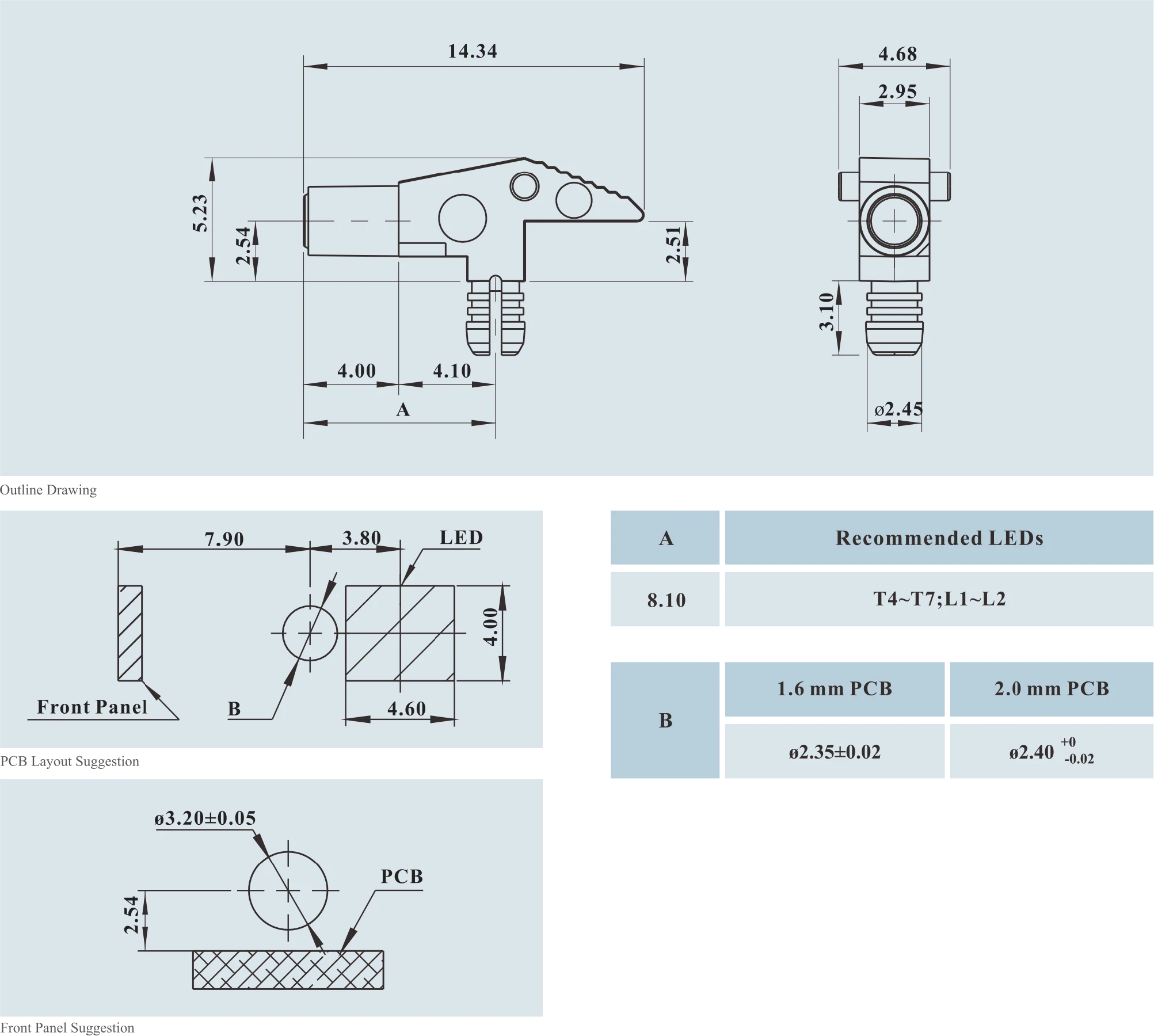

TAE12-S1
TAE12-S1 is a horizontal PCB-mounted light guide designed to transmit LED signals to a visible indicator surface. Its press-fit structure ensures easy installation and reliable alignment, while the diffused lens delivers clear and uniform indication for electronic equipment.
PCB Mounting Hole
ø2.35/ø2.40mm
Mounting Method
Press-Fit
Mounting Type
PCB Mount
Lens Dimension
Ø3.00× 4.00 mm
Lens Shape
Round
Alignment
Horizontal
Lens Optics
Flat
Lens Finish
Diffused
