Channels
2
Pipe Material
PC Clear (UL94 V-0)
Shield Material
PC+ABS White (UL94 V-0)
ESD Protection
< 8 kV
Operating Temperature
−40 °C ~ +90 °C
Pitch
5.08mm
LED Suggestion
LxWxH<4.60x4.60x2.20mm
TAA11-S1

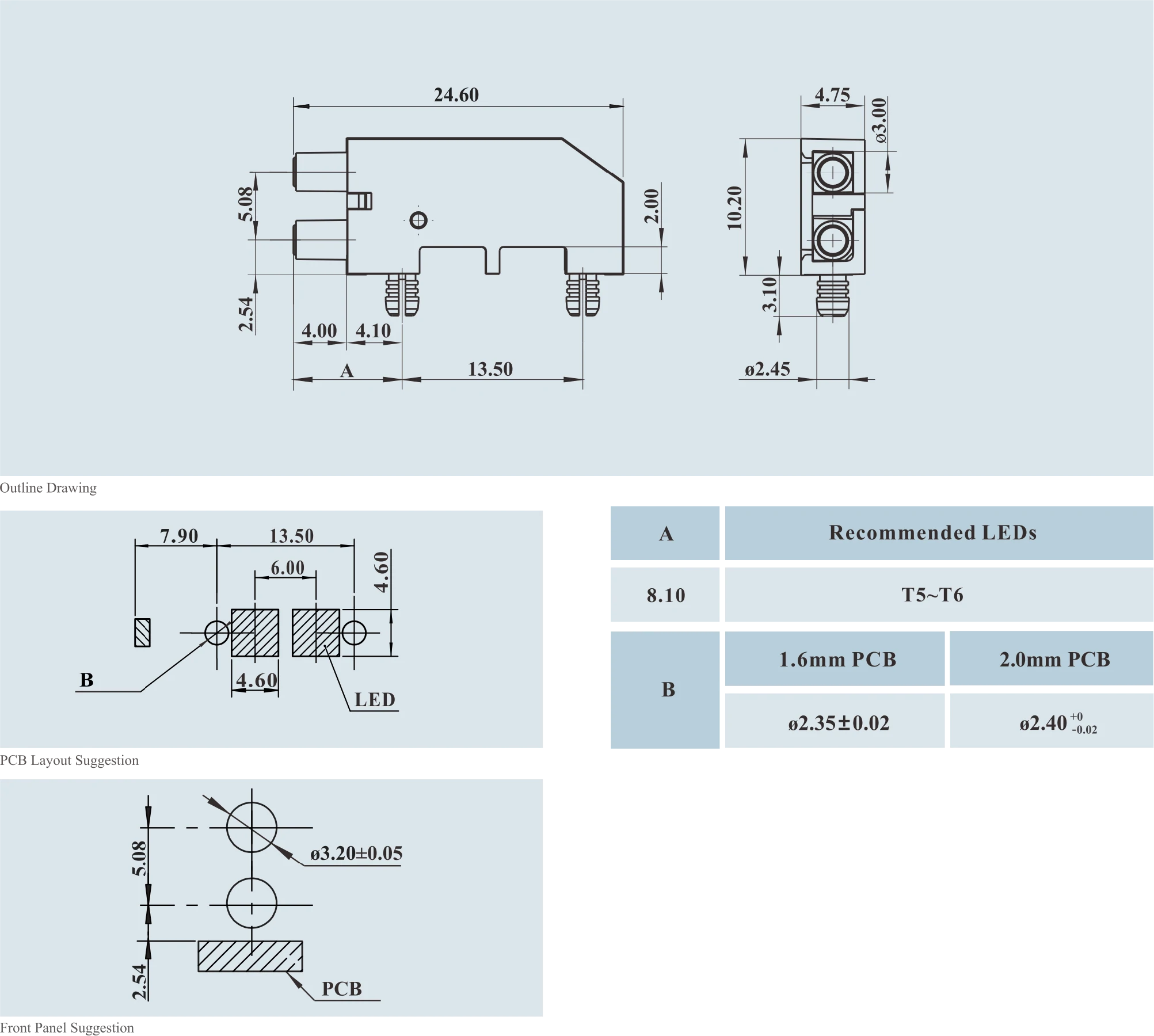

TAA11-S1 is a horizontal dual-channel PCB-mounted light guide designed for compact LED indication. Its press-fit structure ensures stable alignment with PCB LEDs, while the diffused round lenses deliver clear and uniform light output. The bottom opening design also allows the light guide to accommodate larger LED packages.
PCB Mounting Hole
Ø2.35mm-2.40mm
Mounting Method
Press-Fit
Mounting Type
PCB Mount
Lens Dimension
Ø3.00 × 4.00 mm
Lens Shape
Round
Alignment
Horizontal
Lens Optics
Flat
Lens Finish
Diffused
