Channels
2
Pipe Material
PC Clear (UL94 V-0)
Shield Material
PC+ABS White (UL94 V-0)
ESD Protection
< 8 kV
Operating Temperature
−40 °C ~ +90 °C
Pitch
5.08mm
LED Suggestion
LxWxH<4.60x2.80x2.20mm

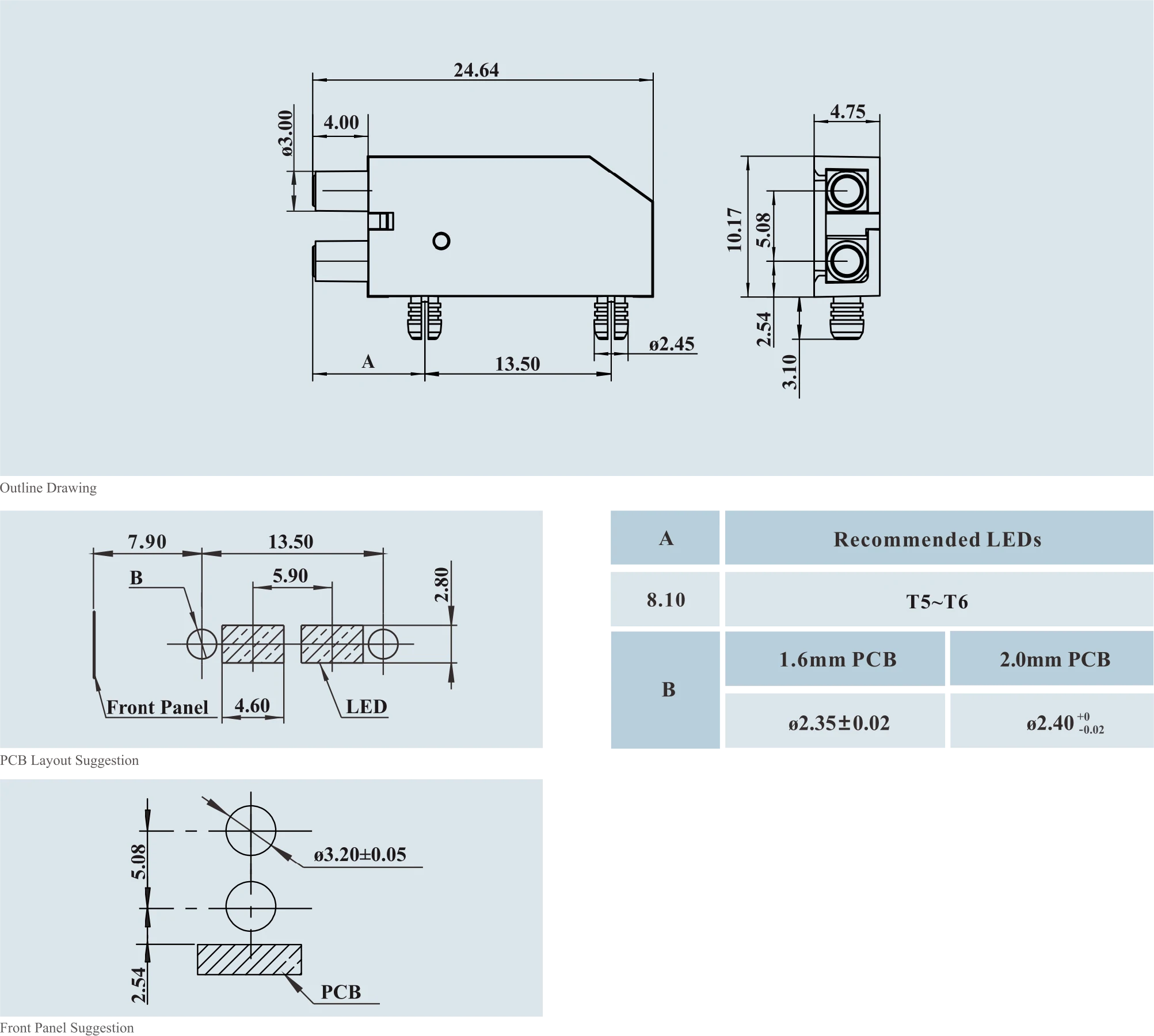

TAA12-S1
TAA12-S1 is a horizontal dual-channel PCB-mounted light guide featuring effective channel isolation to prevent light leakage and crosstalk between indicators. The press-fit structure ensures stable installation, while the diffused lenses provide clear and uniform LED indication.
PCB Mounting Hole
Ø2.35mm-2.40mm
Mounting Method
Press-Fit
Mounting Type
PCB Mount
Lens Dimension
Ø3.00 × 4.00 mm
Lens Shape
Round
Alignment
Horizontal
Lens Optics
Flat
Lens Finish
Diffused
