Channels
4
Pipe Material
PC Clear (UL94 V-0)
Shield Material
PC+ABS White (UL94 V-0)
ESD Protection
< 8 kV
Operating Temperature
−40 °C ~ +90 °C
Pitch
2.54mm
LED Suggestion
<0805
TAC11

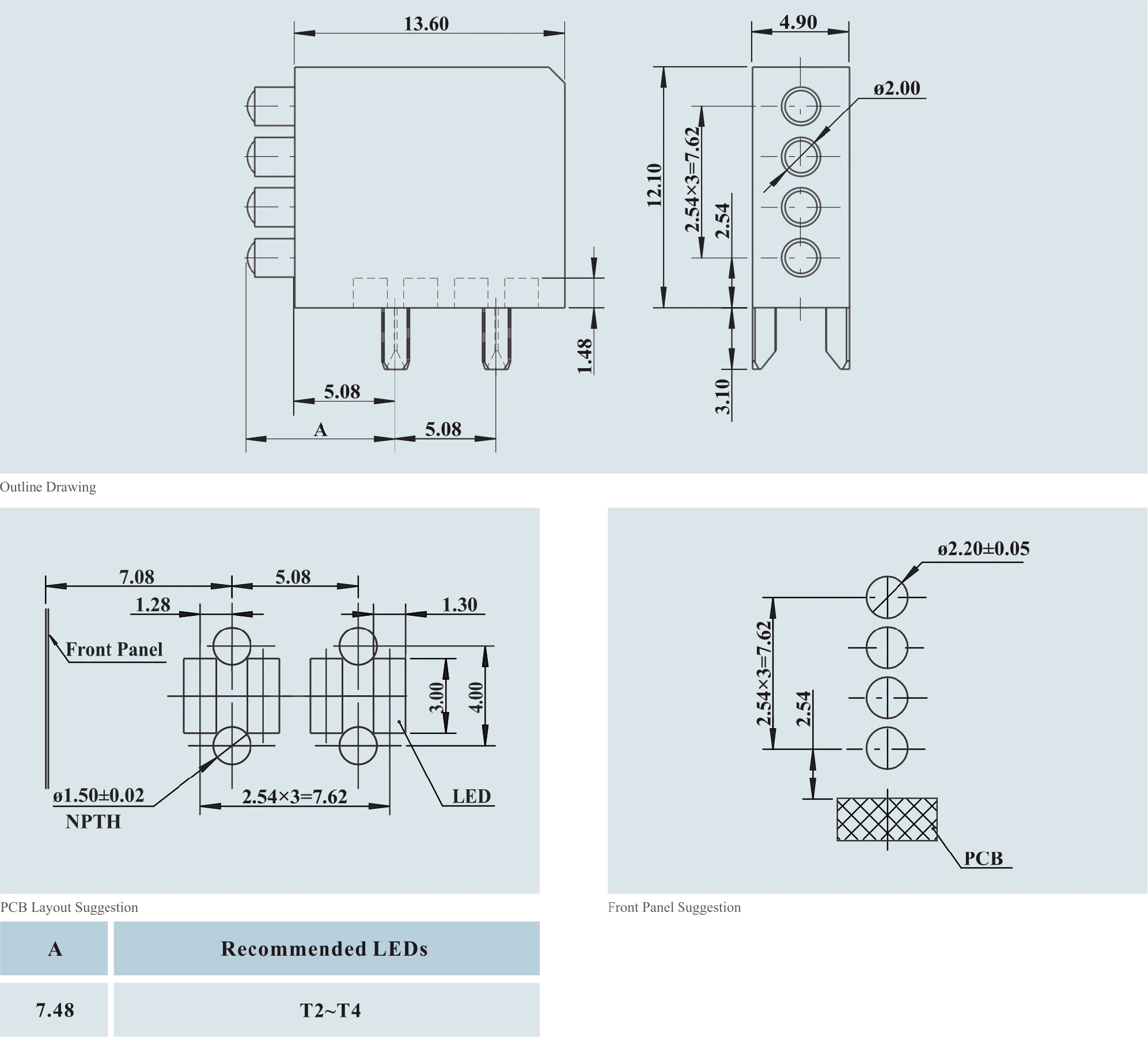

TAC11 is a miniature 4-channel PCB light guide designed for high-density LED indication in compact electronic equipment. With a Ø2 mm optical interface and 2.54 mm pitch, it enables multiple status indicators to be integrated within limited panel space.
PCB Mounting Hole
ø1.50mm
Mounting Method
Press-Fit
Mounting Type
PCB Mount
Lens Dimension
ø2.00×2.40mm
Lens Shape
Round
Alignment
Horizontal
Lens Optics
Flat
Lens Finish
Diffused
