Channels
4~20
Pipe Material
PC Clear (UL94 V-0)
Shield Material
PA66 black Ul94 V0
ESD Protection
< 8 kV
Operating Temperature
−40 °C ~ +90 °C
Pitch
5.08mm
LED Suggestion
LxWxH<4.50x4.00x2.20mm

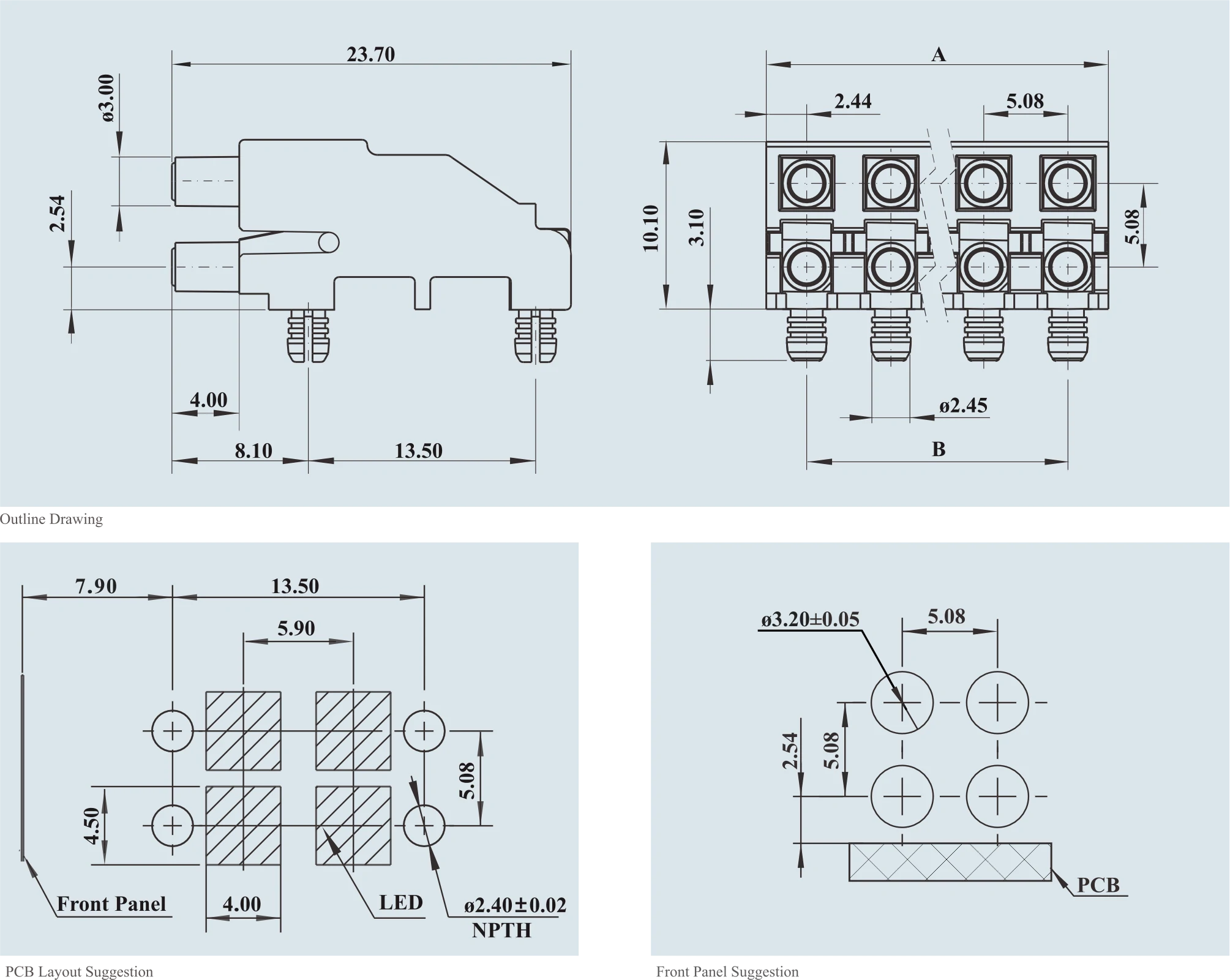

TAD14-XX-S1
TAD14-XX-S1 is a dual-row PCB light guide designed for multi-channel LED indication. The system supports 2–10 channels with 5.08 mm pitch, providing organized status display for industrial electronics. A bottom clearance notch allows compatibility with larger LED packages, while the reinforced pin design improves retention strength after press-fit installation, ensuring stable and reliable mounting.
PCB Mounting Hole
ø2.40mm
Mounting Method
Press-Fit
Mounting Type
PCB Mount
Lens Dimension
ø3.00×4.00mm
Lens Shape
Round
Alignment
Horizontal
Lens Optics
Flat
Lens Finish
Diffused
