Channels
1-10
Pipe Material
PC Clear (UL94 V-0)
Shield Material
PA66 black Ul94 V0
ESD Protection
< 8 kV
Operating Temperature
−40 °C ~ +90 °C
Pitch
N/A
LED Suggestion
LxWxH<4.40x2.60x2.20mm

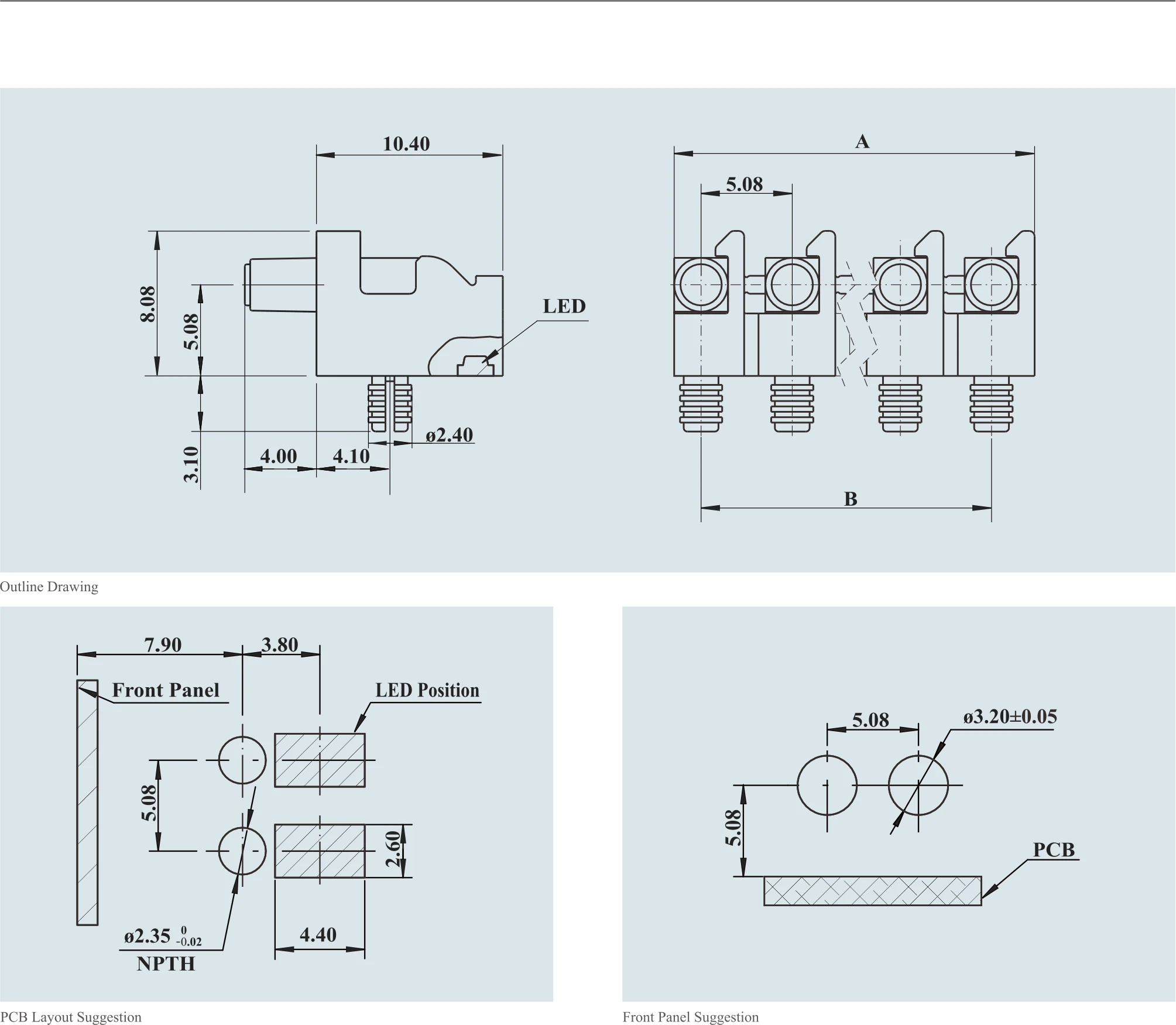

TAE11-XX
TAE11-XX is a modular PCB-mounted light guide system designed for multi-position LED indication. The structure supports 1 to 10 channels, allowing flexible configuration for different indicator layouts.
PCB Mounting Hole
ø2.35mm
Mounting Method
Press-Fit
Mounting Type
PCB Mount
Lens Dimension
ø3.00×4.00mm
Lens Shape
Round
Alignment
Horizontal
Lens Optics
Flat
Lens Finish
Diffused
